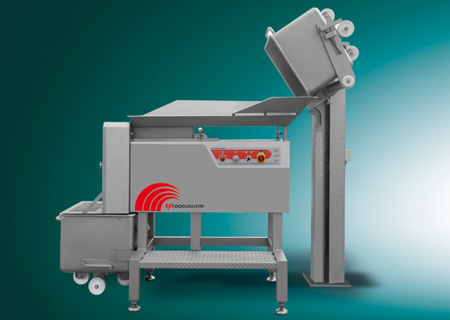

DicR® Capacity 120/126/140 Video

Hand diced results are achieved by using the unique four-dimensional precompression which quite simply holds the fresh meat firm while it is being cut through extremely long grid blades. Four dimensional pre-compression guarantees for the perfect cutting edges all-around.

Refined shape of the slice-cut knife ensures a powerful, smooth and clean cut. Ergonomic single-handed operation with lengthwise chamber opening; extra durable cutting grids to cope with hardest workload as standard feature, including a time saving double chamber system assures loading and dicing together.

Piston advance at choice continuous for high volume cutting with double or four-bladed knife or intermittent cutting with single cut knife achieving precise cubes. Minimum set up time to change grid sets, no tools required!!

DicR® Capacity 126

–Unrivaled huge chamber dimensions reducing YOUR cost two times, less preparation time because primary cutting is minimised, less loading time since filling chamber volume of 10,3 litres allows to process more meat per cycle

–Less human labour - integrated lifting device for 200 litre trolleys (at choice)

–Extra solid stainless steel grid sets fourfold attached, designed for hardest workload

–Strong hydraulic and grid drive system

–Perfect hygiene - folding pan for easiest sanitizing and working chamber with stainless steel drain

–Discharging of cut products into 200 litre trolleys

–Electronic soft-start reduces the mechanical load onto the drive units and increases lifetime of wear parts

DicR® Capacity 140

–Unrivaled huge chamber dimensions reducing YOUR cost two times, less preparation time because primary cutting is minimised, less loading time since filling chamber volume of 10,3 litres allows to process more meat per cycle

–Less human labour - integrated lifting device for 200 litre trolleys (at choice)

–Extra solid stainless steel grid sets fourfold attached, designed for hardest workload

–Strong hydraulic and grid drive system

–Perfect hygiene - folding pan for easiest sanitizing and working chamber with stainless steel drain

–Discharging of cut products into 200 litre trolleys

–Electronic soft-start reduces the mechanical load onto the drive units and increases lifetime of wear parts

    Media Gallery

Technical Data

  Capacity 126 Capacity 120 Capacity 140
Throughput 2400 kg/h 2400 kg/h 3100 kg/h
Connect load 4,3 kW 4,3 kW 4,3 kW
Chamber size 126 x 126 x 530 126 x 126 x 530 140 x 140 x 530
Cross section 120 x 120 120 x 120 120 x 120
Cutting length 0 - 45 mm 0 - 45 mm 0 - 45 mm
Pre-compression X
L x W x H mm 2030 x 1010
x 1490
2030 x 1010
x 1490
2030 x 1010
x 1490
Weight kg 430 430 450
